What we manufacture
Our sealing products range
Eleven product lines manufactured in-house at Amghara to API, ASME, EN and DIN standards.
Approved by
Made to Order
Every Item Is Custom-Made
Each product is manufactured to the exact dimensions of your joint. Send us a drawing, or simply the details, and we'll return a product with full specification.

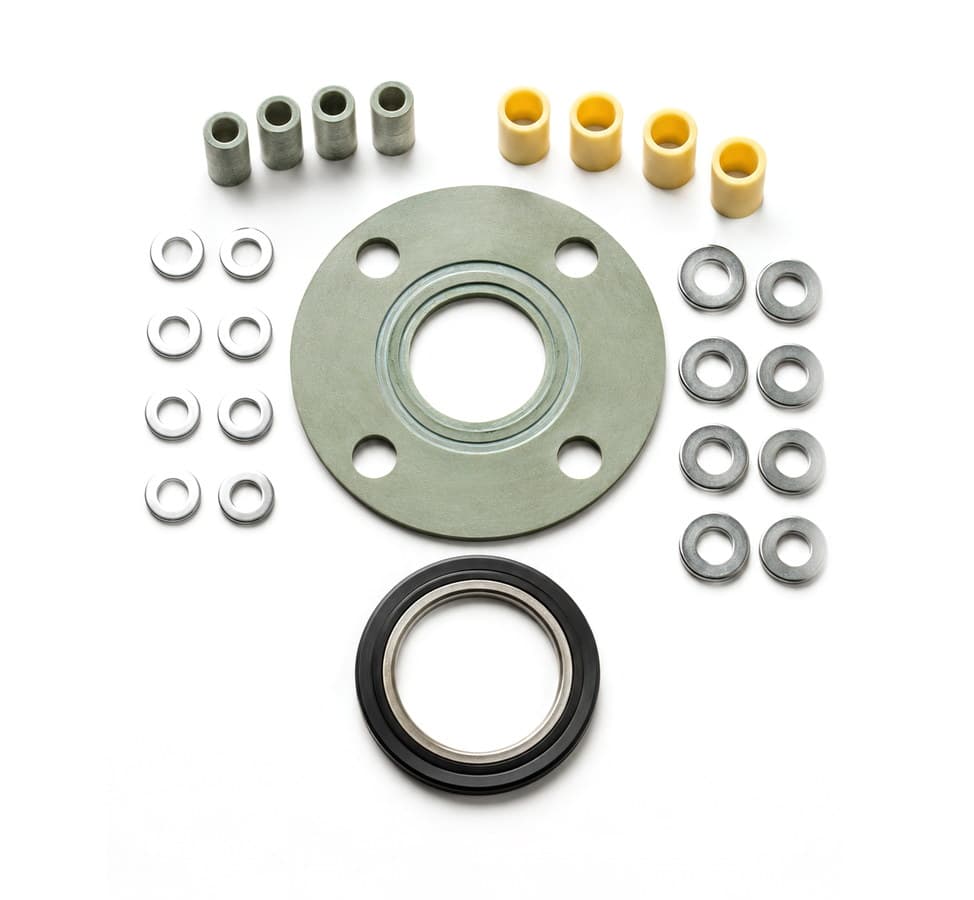

Flange Installation Kits
Manufactured as per standards & custom design
Flange installation kits electrically isolate bolted flange connections to break galvanic cells and protect cathodic protection systems. Each kit is supplied complete with the gasket, sleeves and washers matched to the flange, for both normal and high-temperature service.
Typical applications
- Cathodic protection isolation
- Pipeline flange joints
- Above-ground and buried pipework

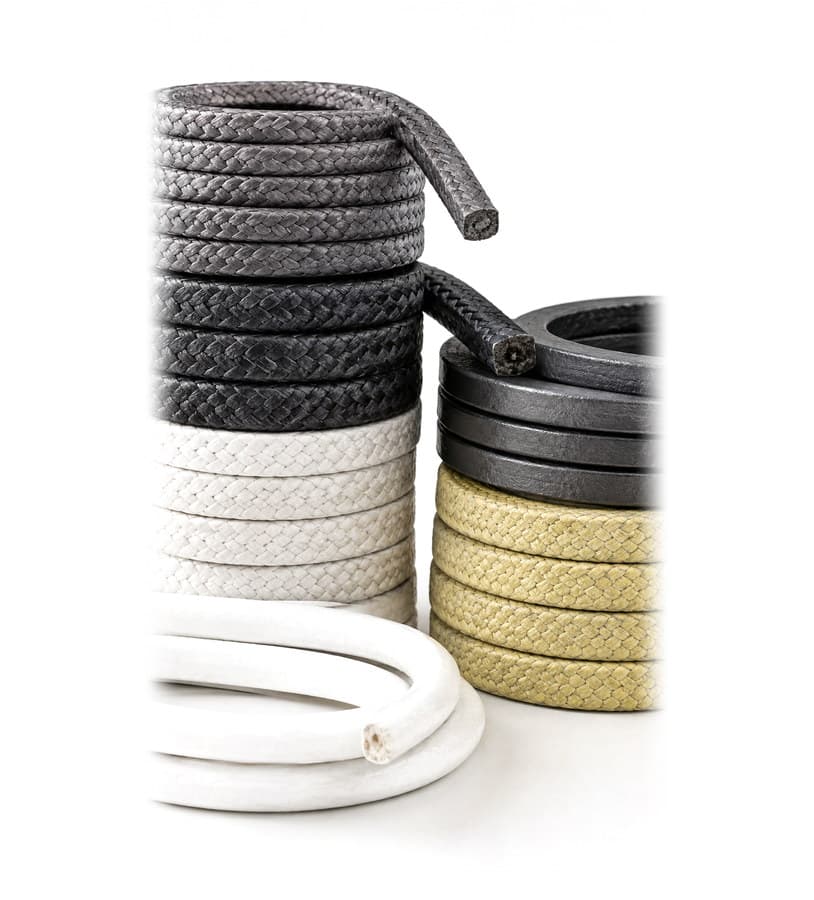

Gland Packing
Manufactured as per standards & custom design
Compression packing for pumps, valves and rotating equipment, supplied as braided or die-formed rings and in continuous lengths. Available across a full range of graphite, PTFE, synthetic fibre and blended constructions to match the medium, pressure and shaft speed.
Typical applications
- Centrifugal pumps
- Valve stems
- Rotating equipment
- Agitators

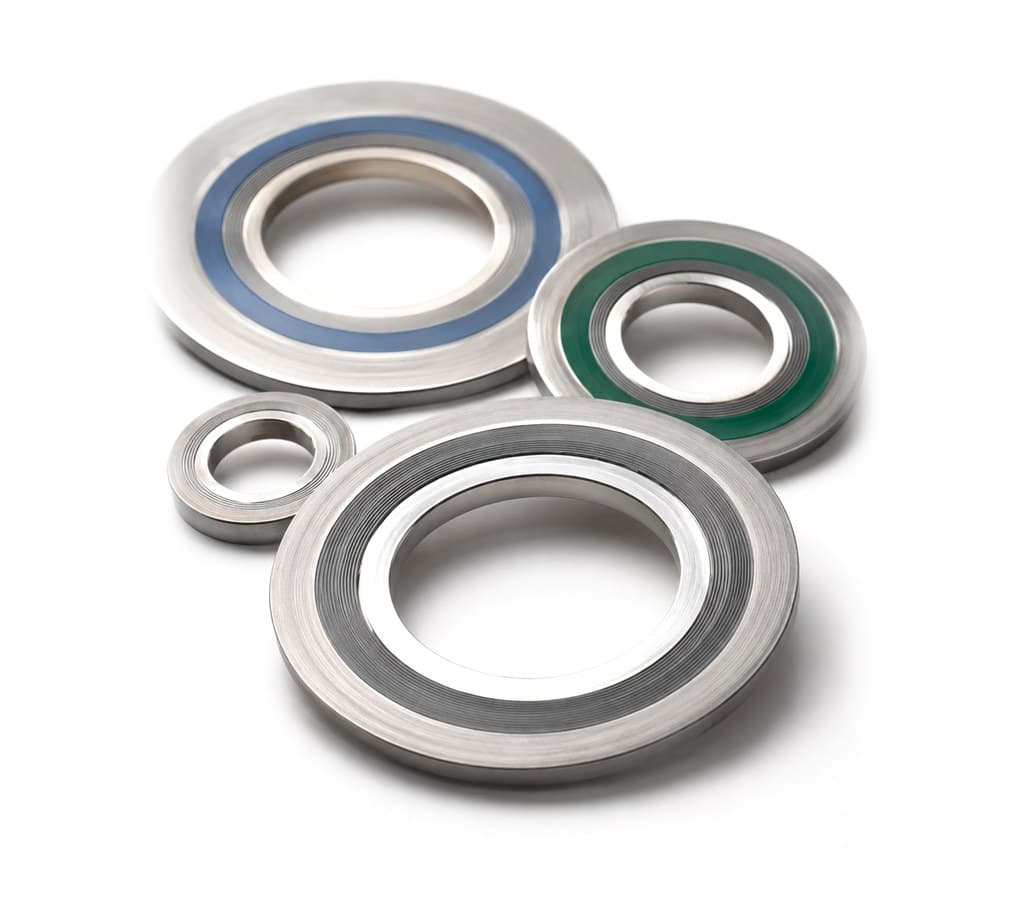

Spiral Wound Gaskets
Manufactured as per standards & custom design
Spiral wound gaskets combine alternating windings of preformed metal strip and soft filler to seal reliably under high pressure, high temperature and thermal cycling. Manufactured in-house as per standards & custom design.
Typical applications
- High-pressure flange joints
- High-temperature process lines
- Thermal cycling service
- Refinery and petrochemical piping

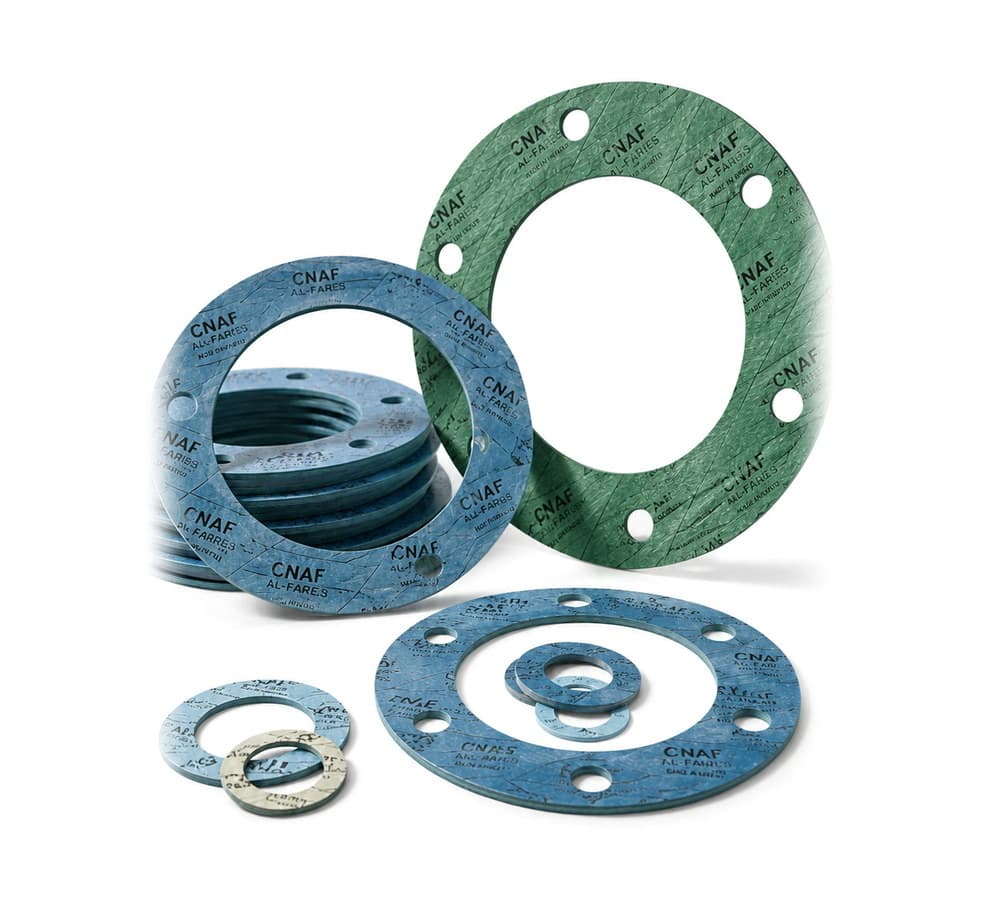

Non-Asbestos CNAF Cut Gaskets
Manufactured as per standards & custom design
Sheet gaskets cut from compressed non-asbestos fibre and related materials for general flange and equipment sealing. Cut in-house to the customer's flange or drawing, in non-asbestos, graphite, PTFE, rubber and PTFE-envelope constructions.
Typical applications
- General flange sealing
- Equipment and manway covers
- Utility and water service
- Chemical service (PTFE envelope)

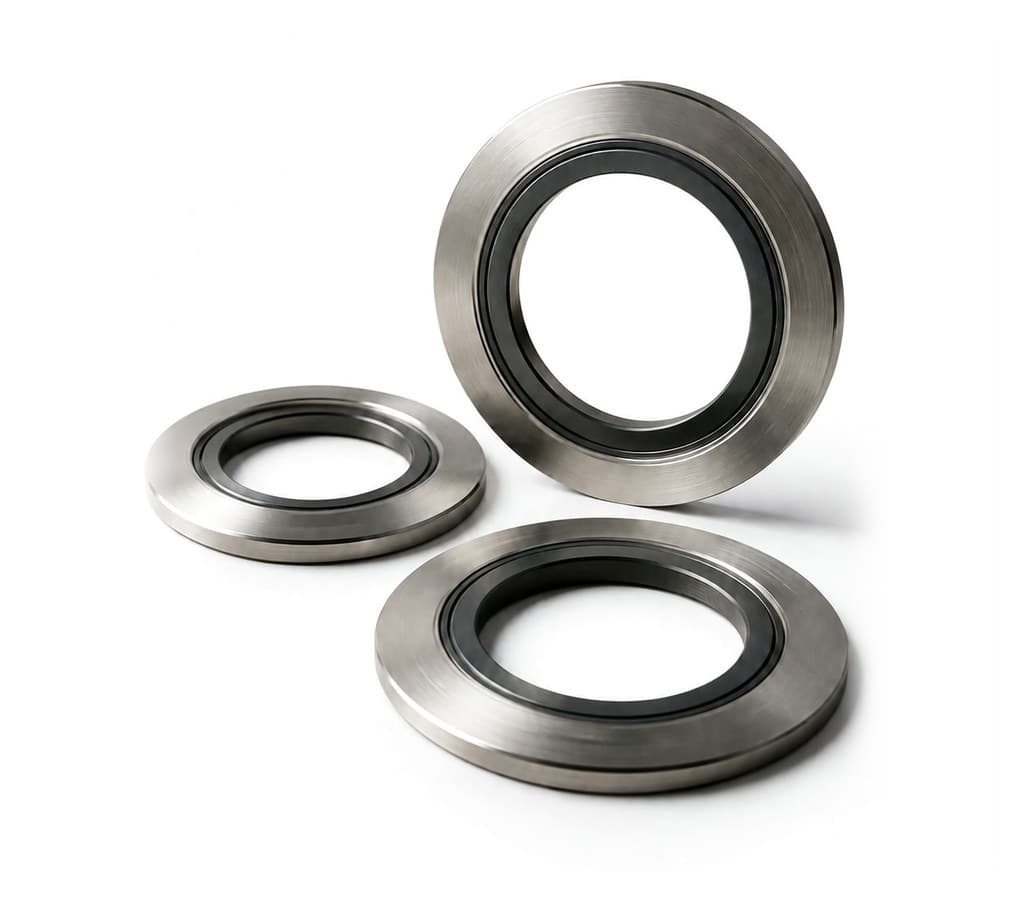

Kamprofile Gaskets
Manufactured as per standards & custom design
Kamprofile gaskets use a serrated solid metal core faced with a soft sealing layer, giving a tight seal at low bolt load and excellent resistance to blow-out. The metal core can be re-faced and reused, which makes them a strong choice for heat exchangers and frequently opened joints.
Typical applications
- Heat exchangers
- Frequently opened flange joints
- Low bolt-load applications
- High-temperature service

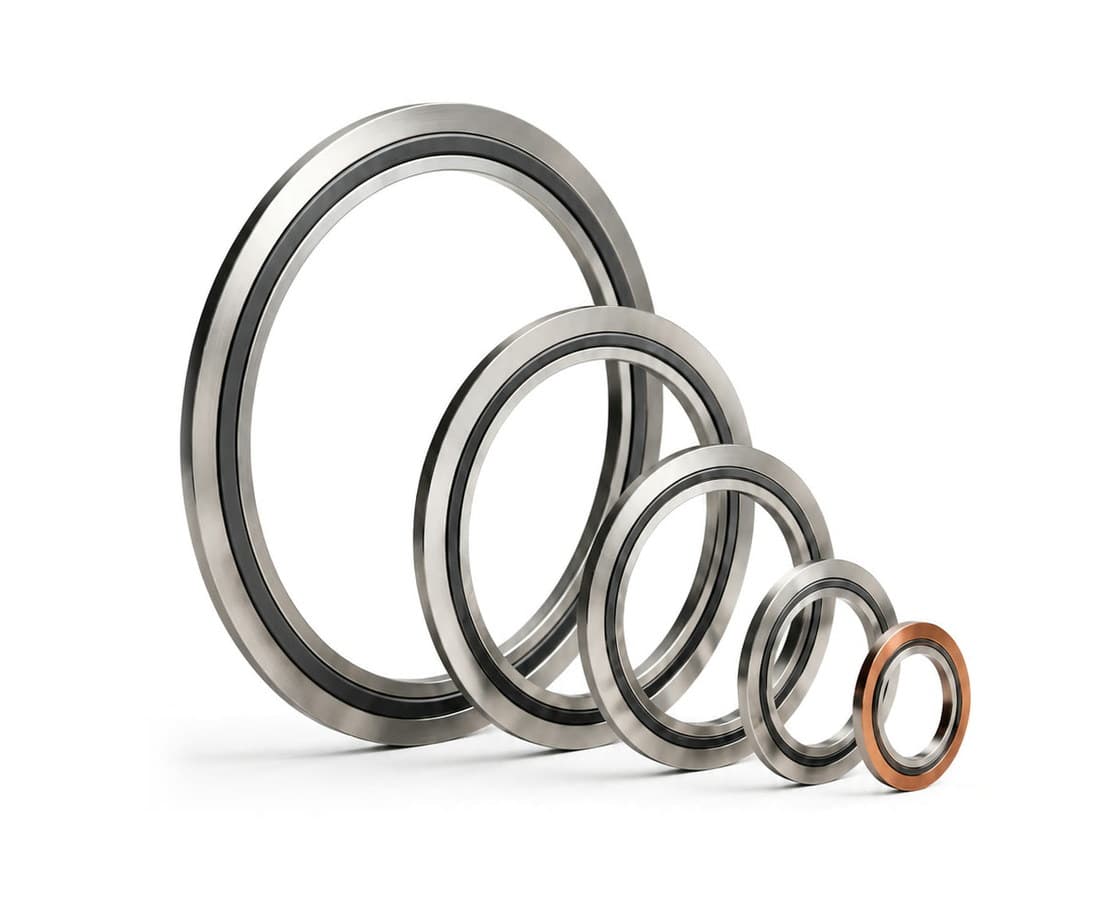

Double Jacketed Gaskets
Manufactured as per standards & custom design
A soft filler encapsulated by a metal jacket and insert, designed for high-temperature and high-pressure service. Double jacketed gaskets seal across large or irregular faces where a solid metal gasket would demand too much bolt load, and are manufactured to standard flange dimensions and to custom shapes for heat exchanger and vessel applications.
Typical applications
- Heat exchanger channel covers
- Pressure vessel joints
- Large-diameter flanges
- Irregular sealing faces

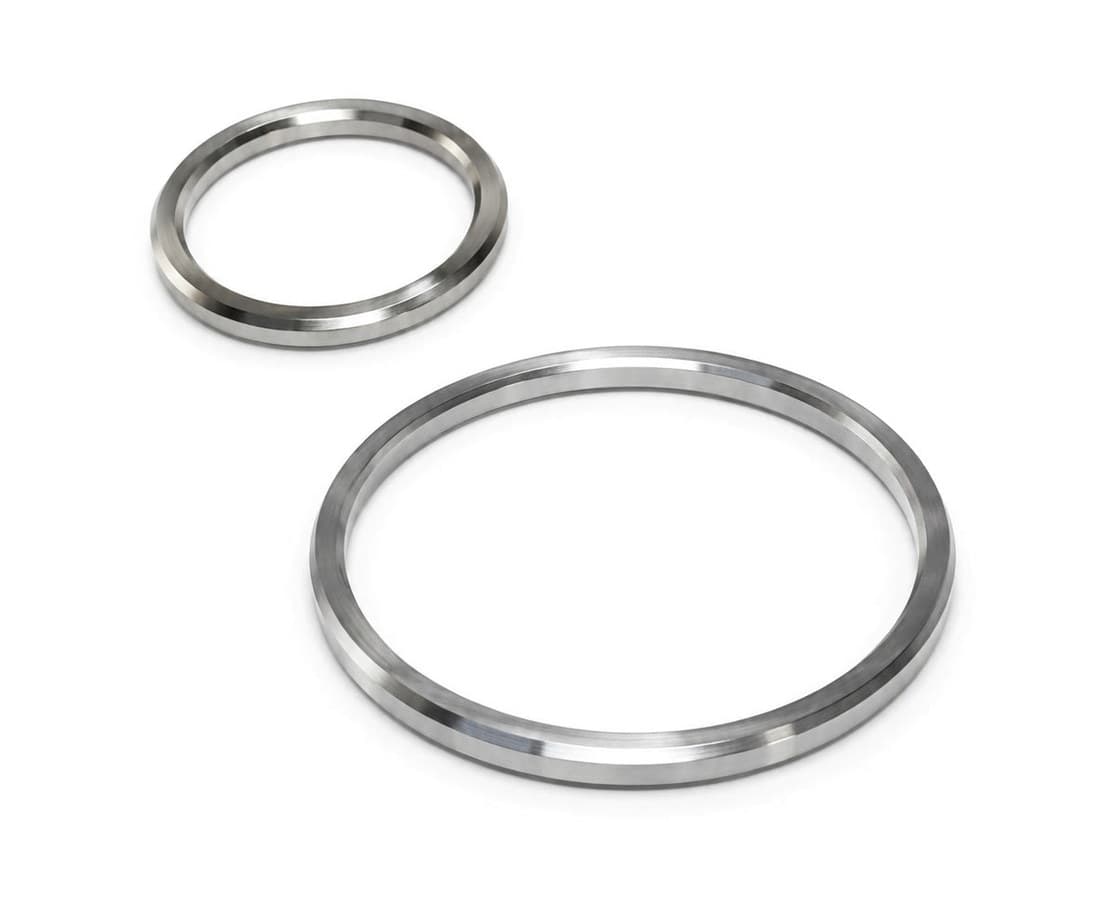

Ring Joint Gaskets (RTJ)
Manufactured as per standards & custom design
Solid metal ring-type joint gaskets seal by controlled plastic deformation into a machined flange groove, making them the standard choice for the highest-integrity connections in oil and gas service. Manufactured in R, RX and BX profiles, in soft iron, low carbon and stainless grades.
Typical applications
- Wellhead and Christmas tree connections
- High-pressure process flanges
- Critical high-integrity joints

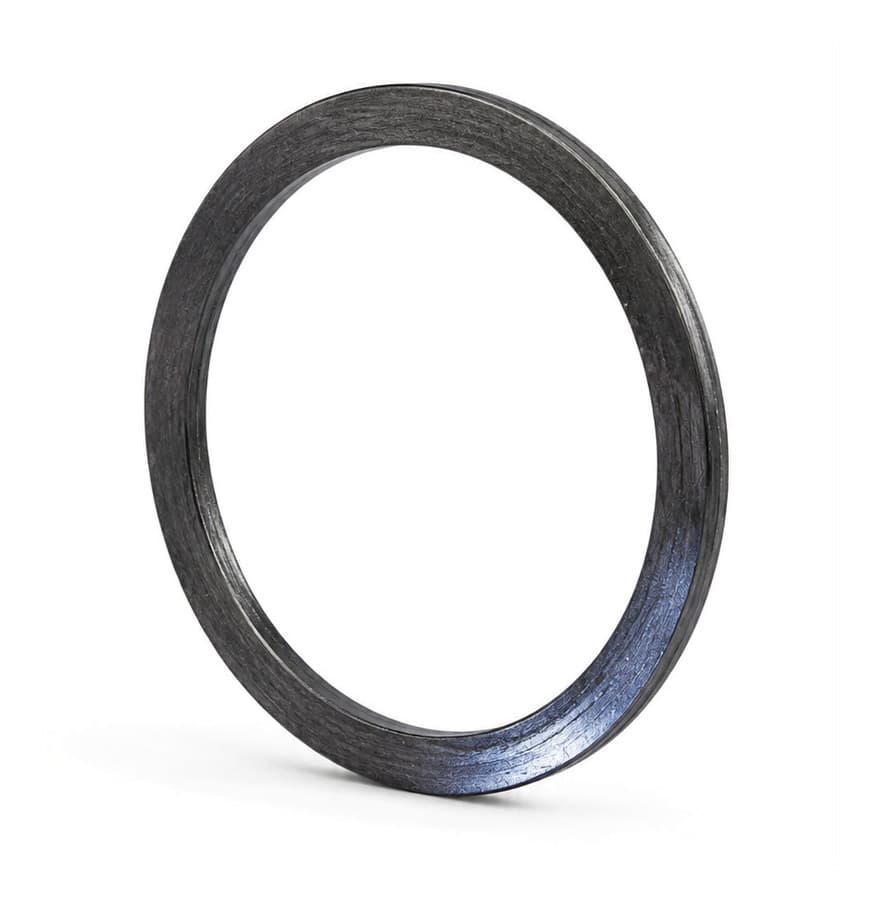

Graphite Moulded Ring Gaskets
Manufactured as per standards & custom design
Moulded flexible graphite rings for high-temperature service where a die-cut sheet gasket cannot deliver the density or profile required. Manufactured entirely to customer design, in any shape with metal insert or without.
Typical applications
- High-temperature sealing
- Valve and pump bodies
- Custom equipment joints

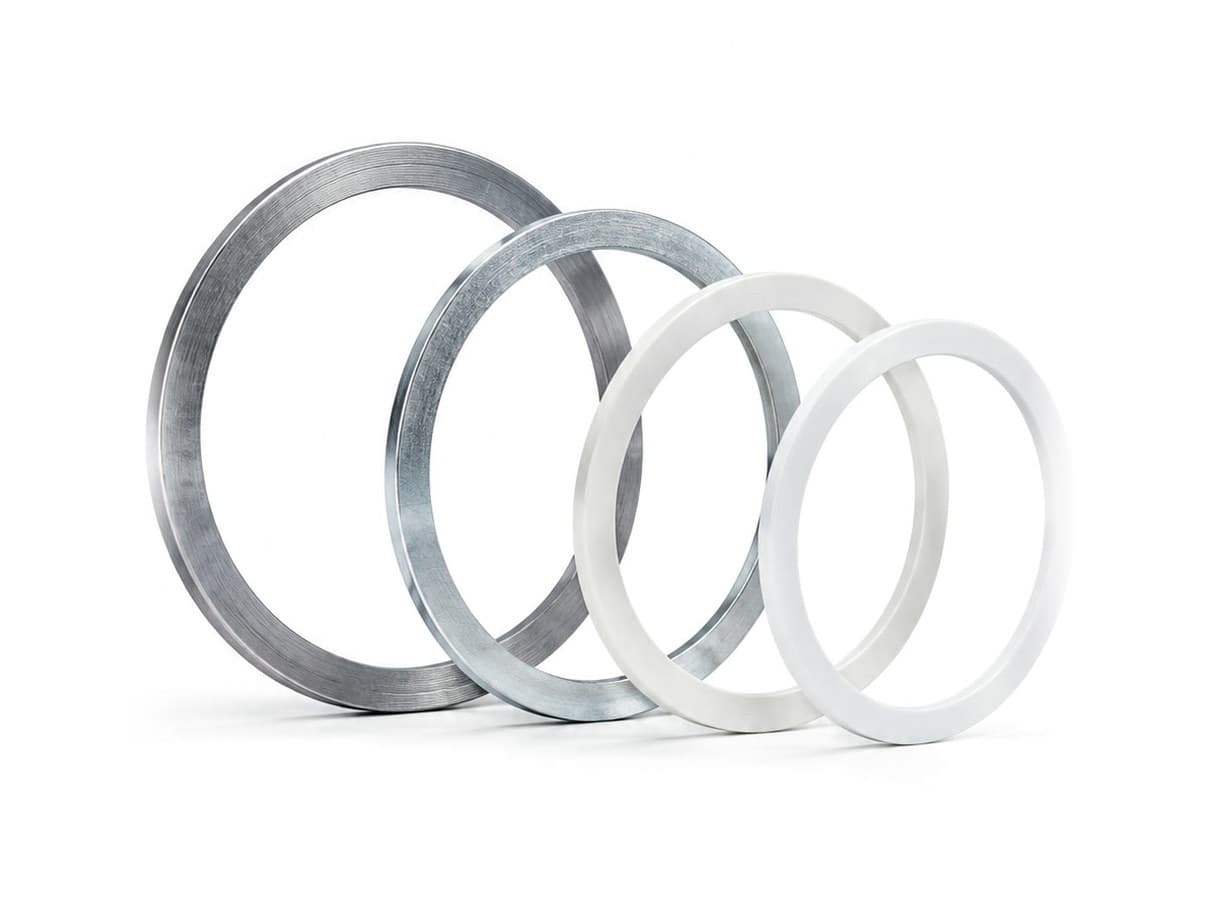

Plug Gaskets
Manufactured as per standards & custom design
Metal plug gaskets machined to fully customised designs for specialist sealing positions. Produced in soft iron, low carbon steel, stainless steel and exotic alloys to suit the medium and service temperature.
Typical applications
- Specialist equipment sealing
- Custom flange arrangements

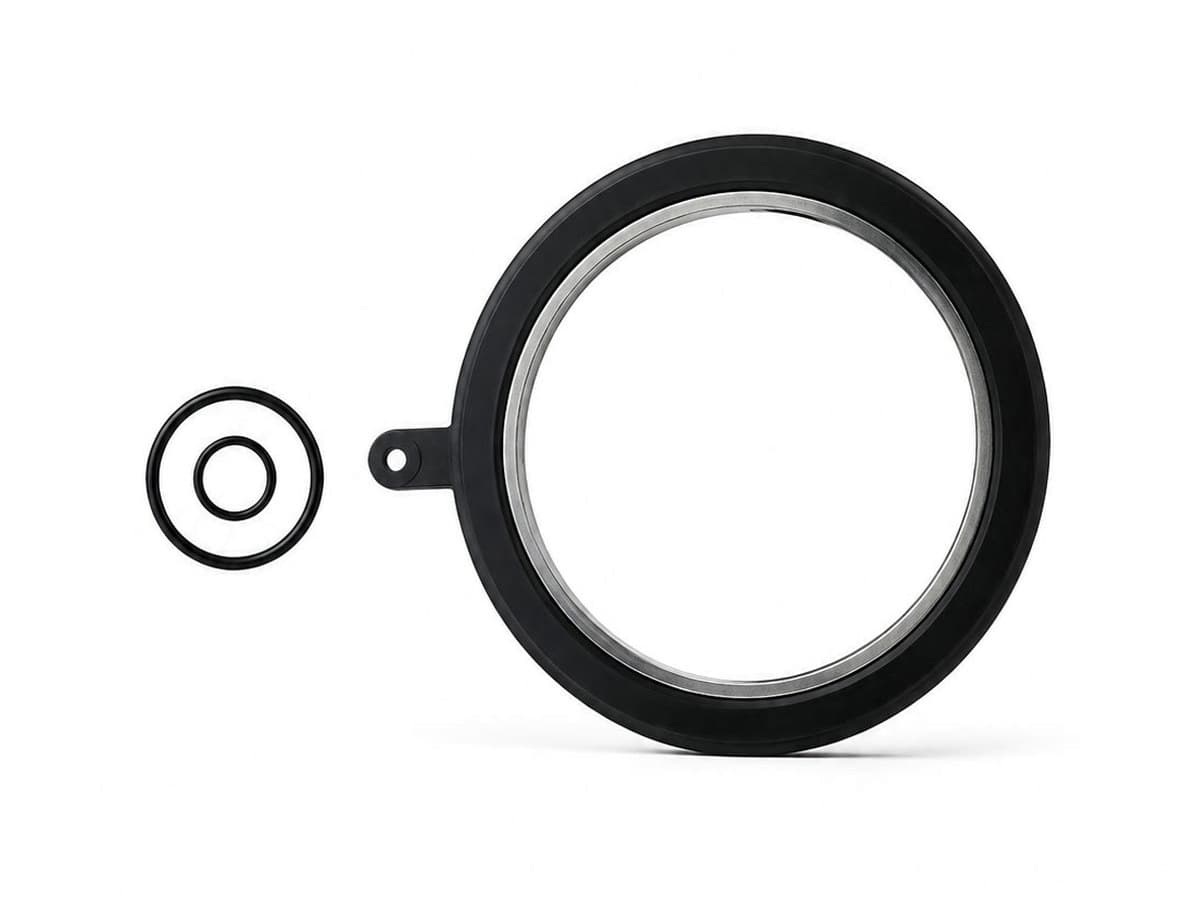

Rubber Gaskets with Steel Insert & O-Rings
Manufactured as per standards & custom design
Elastomer gaskets reinforced with a steel insert for dimensional stability under bolt load, made to the customer's dimensions. Matched O-rings are manufactured alongside them so the complete sealing set comes from one source.
Typical applications
- Water and utility service
- Low-pressure flanges
- Equipment covers

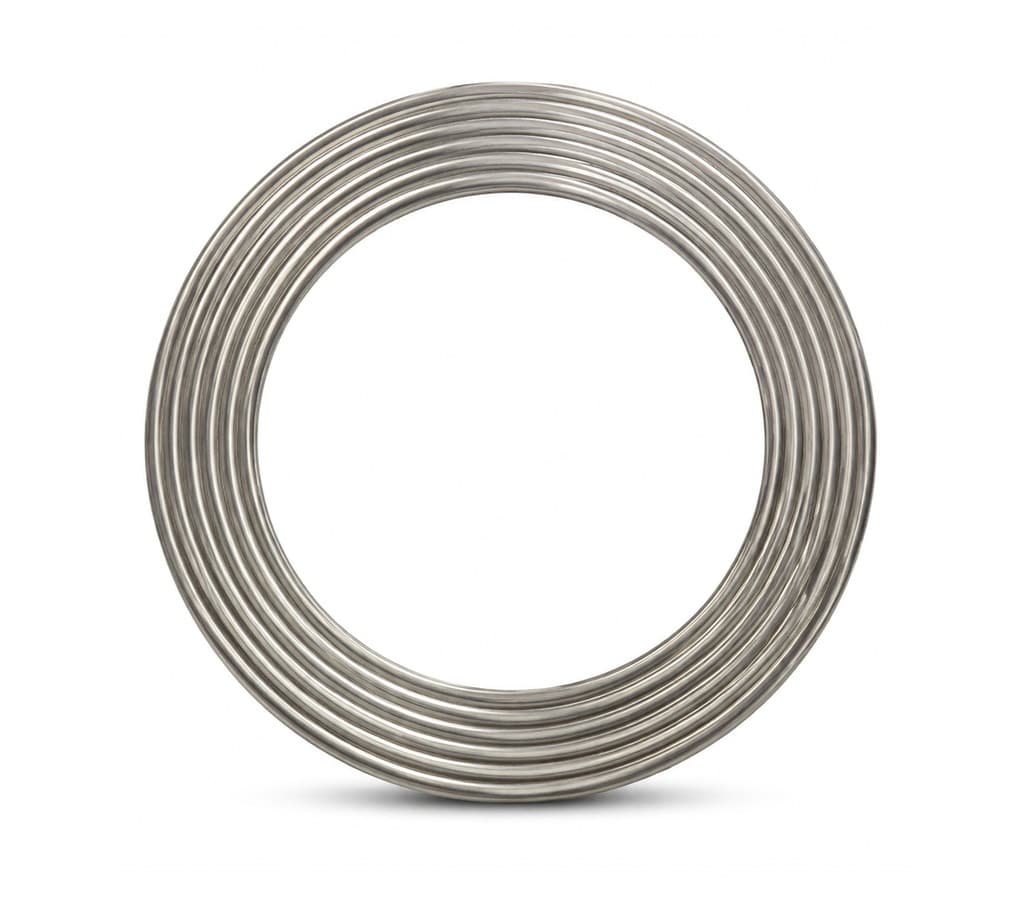

Corrugated Metal Gaskets
Manufactured as per standards & custom design
Corrugated gaskets are a highly versatile family of products, available in a wide range of configurations and suited to a wide range of applications. The concentric corrugations concentrate the bolt load into a series of narrow sealing lines, so the gasket seals at lower load than a flat metal gasket; for improved sealing performance the core can be partially or completely covered with a soft layer.
Typical applications
- Valve bonnets and small recess gaps
- Heat exchangers
- Uneven or distorted flanges
- Low bolt-load joints
Tell us the joint
Send us what you need to seal.
The dimensions or the dimensional drawing along with the photograph is enough for us to come back with our specification and a very competitive price from our own factory.
Send us a drawingOutside what we manufacture
Need something we don't make at all?
Our trading division sources oil & gas products from trusted manufacturers worldwide and delivers them across the GCC. One supplier, whichever route it takes.
Visit the trading division
